Fog And Stratus - Typical Appearance In Vertical Cross Sections
by FMI
- Relative humidity:
A moist lower troposphere and relatively dry layers above typical for both radiation and advection St/Fog. - Total Cloud cover:
High (over 80%) cloud cover either very near or at the surface (both fog types ) or slightly lifted off the surface (advection St/Fog). - Isentropes:
Potentially stable situation at the lowest part of the troposphere. - Temperature:
Surface (for both fog types) or elevated (for advection Stratus) temperature inversion.
Advection Fog/St
|
09 November 2005/12.00 UTC - Meteosat 8 HRV image; position of the Vertical Cross Section indicated
|
|
|
|
Radiation Fog
|

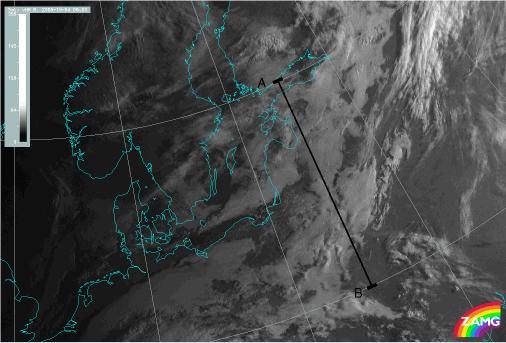

04 October 2005/06.00 UTC - Meteosat 8 HRV image; position of the Vertical Cross Section indicated.
|
|
|
|
Relative Humidity
Advection St/Fog:
|

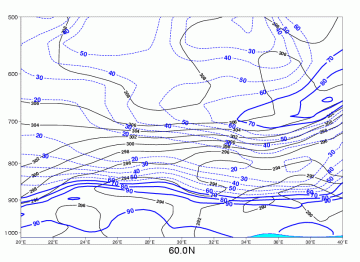

09 November 2005/12.00 UTC - Vertical cross section; blue: relative humidity
|
|
|
|
Radiation Fog:
|

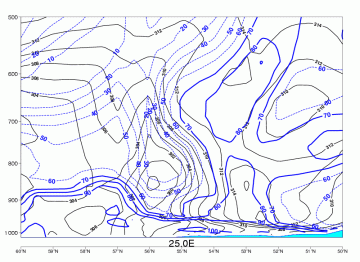

04 October 2005/06.00 UTC - Vertical cross section; blue: relative humidity
|
|
|
|
Total Cloud Cover
Advection St/Fog:
|

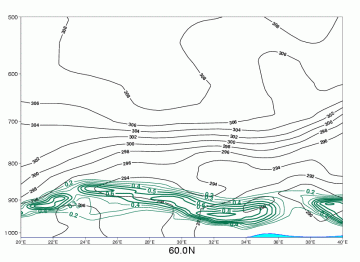

09 November 2005/12.00 UTC - Vertical cross section; green: total cloud cover
|
|
|
|
Radiation Fog:
|

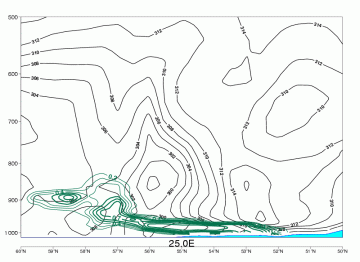

04 October 2005/06.00 UTC - Vertical cross section; green: total cloud cover
|
|
|
|
Isentropes
Advection St/Fog:
|

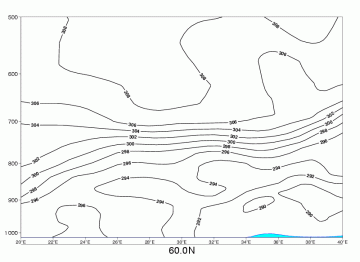

09 November 2005/12.00 UTC - Vertical cross section; black: isentropes
|
|
|
|
Radiation Fog:
|

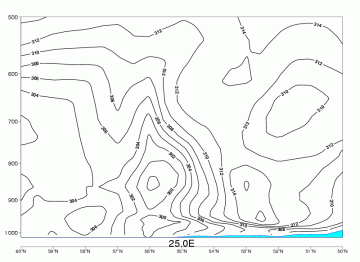

04 October 2005/06.00 UTC - Vertical cross section; black: isentropes
|
|
|
|
Temperature
Advection St/Fog:
|

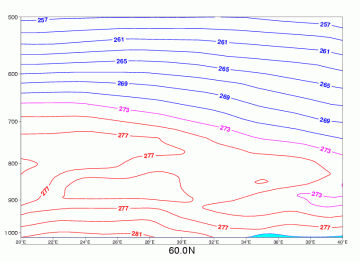

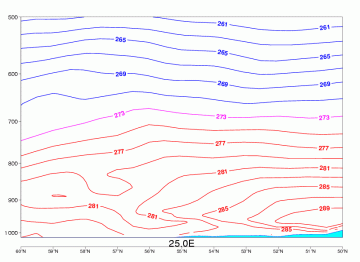

09 November 2005/12.00 UTC - Vertical cross section; red, magenta, blue: temperature
|
|
|
|
Radiation Fog:
|
04 October 2005/06.00 UTC - Vertical cross section; red, magenta, blue: temperature
|
|
|
|
