Convective Cloud Features In Typical Synoptic Environments: The Spanish Plume - Key Parameters
by FMI
- Stability index on isobaric surfaces:
Showalter index values below 3 units are expected. - Equivalent potential temperature at 850 hPa:
Tongue of high values of ThetaE; deep convection develops in the area of maximal values. - Thermal Front Parameter (TFP):
TFP associated with the gradually weakening Cold Front, and potential new front development ahead of the original Cold Front.
Stability index on isobaric surfaces
|

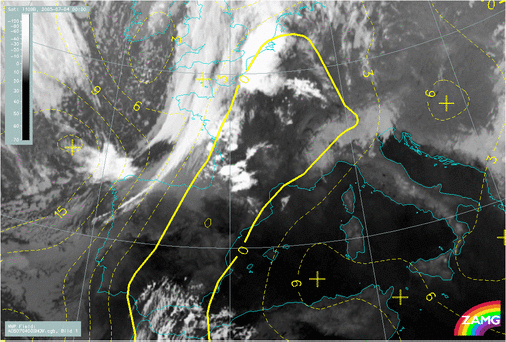

04 July 2005/00.00 UTC - Meteosat 8 IR10.8 image; yellow: Showalter index
|
|
|
|
Equivalent potential temperature at 850 hPa
|

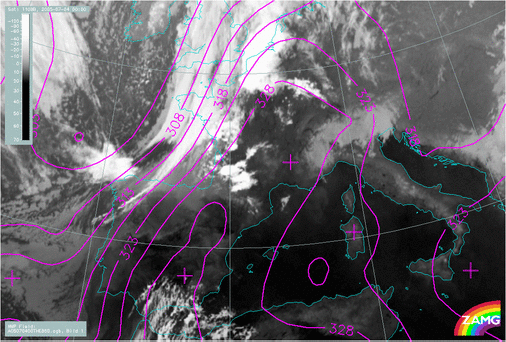

04 July 2005/00.00 UTC - Meteosat 8 IR10.8 image; magenta: Equivalent potential temperature 850 hPa
|
|
|
|
Thermal Front Parameter (TFP)
|

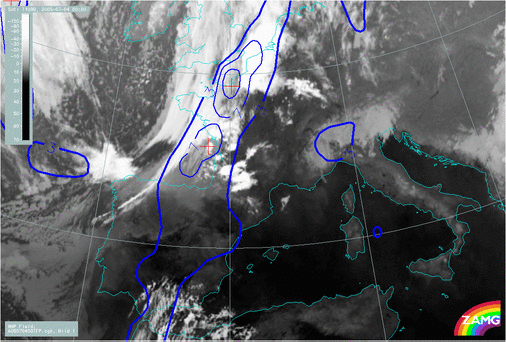

04 July 2005/00.00 UTC - Meteosat 8 IR10.8 image; blue: thermal front parameter
|
|
|
|
