Warm Conveyor Belt - Meteorological Physical Background
by ZAMG
A Warm Conveyor Belt is defined as a layer of air which:
- originates in a relative easterly to south-easterly flow within the lower levels of the troposphere in
the ridge area ahead of the front;
- generally ascends pole ward (north to north-eastern direction) forming cloudiness due to the
condensation of moist air;
- after turning to south-eastward directions ascending motion changes to descending motion, where cloud
dissolution takes place.
As already mentioned Warm Conveyor Belts are directly involved in the frontal processes, but typical cloud configurations can also be observed separately from the frontal cloudiness. Different states of the atmosphere are responsible for these two types:
- The cloudiness of a front is developed within two relative streams: the Warm Conveyor Belt and a less
wet relative stream from the trough area behind; the Warm Conveyor Belt is connected at least with the
leading part of the cloudiness, therefore the relative stream lines approach or even overrun the surface
front (or the TFP).
- In the case of separated Warm Conveyor Belt cloudiness the relative stream lines are in front of
the frontal cloud band and the relative stream from behind crosses the frontal line in a forward direction,
consequently approaching the stream lines of the Warm Conveyor Belt.
- These different situations show up in the vertical cross section of equivalent potential temperature in
the case of a Warm Conveyor Belt being involved in the front. The upper troposphere in front of the Cold
Front surface shows either an indistinct or a trough configuration of isentropes. In the case of a Warm
Conveyor Belt being separated from the front, a second downward inclined crowding zone of isentropes can be
observed in high and middle levels. The air in the Warm Conveyor Belt moves on these isentropic surfaces.
A survey by ZAMG has shown that over the past two years over 57% of the Warm Conveyor Belts that occurred happened over
North-Africa and the Mediterranean and could be subscribed to the more isolated and separated type of Warm Conveyor Belt.
Of the 467 cases examined less than 70 (15%) occurred over western, northern or eastern Europe and were mostly connected
to a frontal system.

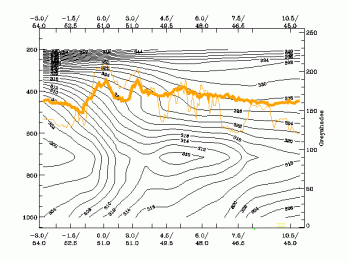

13 September 2004/12.00 UTC - Vertical cross section; black: isentropes (ThetaE), orange thin: IR pixel values,
orange thick: WV pixel values
The 320K isentrope belongs to the Cold Front, the 326K isentrope to the Warm Conveyor Belt cloudiness.

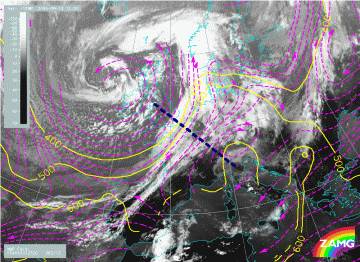

13 September 2004/12.00 UTC - Meteosat 8 IR 10.8 image; magenta: relative streams 320K - system velocity: 263°
13 m/s, yellow: isobars 308K, position of vertical cross section indicated
|

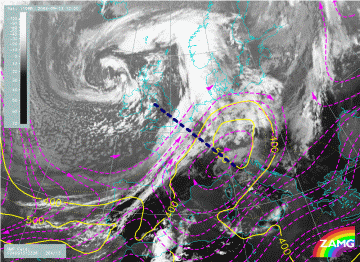

13 September 2004/12.00 UTC - Meteosat 8 IR 10.8 image; magenta: relative streams 326K - system velocity: 264°
13 m/s, yellow: isobars 326K, position of vertical cross section indicated
|
|
|
At the 320K isentropic surface, which is relevant for the cloud band of the Cold Front, the whole frontal cloudiness is
under the influence of the upper relative stream from behind. The limiting stream line between this stream and the Warm
Conveyor Belt can be found at the eastern edge of the cloudless area between Cold Front and Warm Conveyor Belt. The
cloudiness with the embedded cells in front of this zone is already under the influence of the Warm Conveyor Belt.
At the 326K surface the Warm Conveyor Belt, which has an ascending poleward direction, forms the cloudiness Warm
Conveyor Belt. Above the Atlantic (at approximately 43N/10W) the conveyor belt splits into two branches. The southern
branch turns from a north-eastward direction to a south-eastward one and forms the cloudiness which extends to the west
coast of Portugal. The northern branch turns from a eastward to a north-eastward direction forming the cloudiness above
the Gulf of Biscay and France towards Germany. The limiting stream line between the relative stream from behind the
front and the Warm Conveyor Belt can be found above the convective cells. Therefore the cells are under the influence of
the warm moist air mass of the Warm Conveyor Belt in lower layers, but in the colder drier air of the upper relative
stream in higher layers. This is a typical situation for instability and convective development.

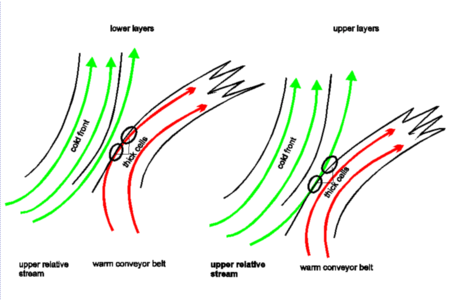

- At the rear boundary of the Warm Conveyor Belt close to the Cold Front cloud band, sometimes convective cells
develop. This is the area where in lower levels the moist air of the Warm Conveyor Belt streams northward, while
in higher levels the air in the drier relative stream from behind the front crosses over. This is a typical
unstable layer of the troposphere leading, in combination with upward motion, to convective developments
(compare the example before).
