Warm Front Shield - Cloud Structure In Satellite Images
by ZAMG

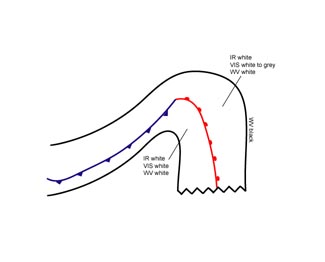

- The satellite image shows a synoptic scale cloud shield which lies in front of a Cold Front, and comprising the
area of the Warm Front and the warm sector.
- In the VIS image the grey shades, in a well developed case, are generally white within the warm sector and near
to the surface Warm Front,while the grey shades become gradually more and more grey towards the forward cloud
edge (see Warm Front Band).
- In the IR image the grey shades of the cloud shield are usually white indicating cold cloud tops, but very often
they show substructures differing from case to case.
- The pixel values in the WV image within the area of the cloud shield are high and bright.
- At the leading edge of the cloud shield the WV image shows, along the jet axis, a sharp gradient
from white to black indicating dry air at the cyclonic jet side (see Warm Front Band).
- In contrast to the Warm Front Band,(see
Warm Front Band - Cloud structure in satellite image
) the warm sector of the Warm Front Shield is overcast with cloudiness within the ascending Warm Conveyor
Belt, which can, in a well developed case, extend through a rather deep layer of the troposphere.

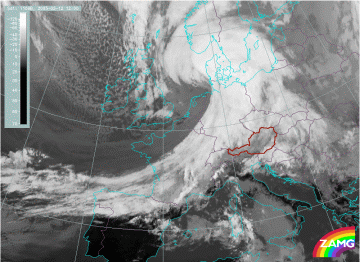

12 February 2005/12.00 UTC - Meteosat 8 IR 10.8 image
|

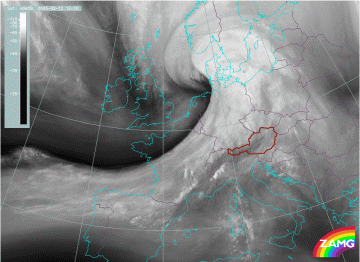

12 February 2005/12.00 UTC - Meteosat 8 WV 6.2 image
|
|
|
|
|
12 February 2005/12.00 UTC - Meteosat 8 VIS 0.6 image
|
|
The IR and the WV image of 12.00 UTC show a cloud shield of a Warm Front extending from south Sweden over the Baltic Sea
into Poland and further south. The VIS image from 12.00 UTC shows the shield as greyish. Not related to the Warm
Front Shield but still remarkable, are the contrails seen at the rear edge of the Cold Front, southeast of Ireland.
Additionally, several features mentioned above can be observed:
- bright grey shades in the centre of the cloud shield in the IR and WV images;
- high albedo values in the VIS image in the centre of the cloud shield and gradually decreasing values to the
forward edge;
- the black area in the WV imagery in front of the leading edge of the cloud shield along the cyclonic side of the
jet;
- the cloud shield encompasses the warm sector and the Warm Front area, which is in contrast to the band-form of the
Warm Front.
