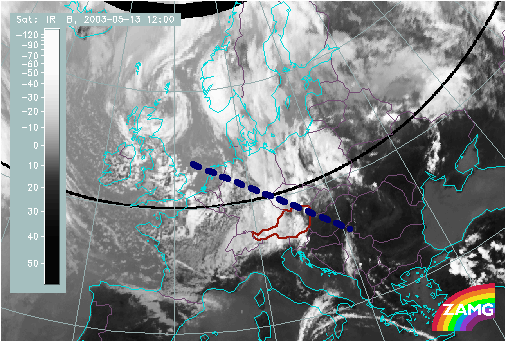

13 May 2003/12.00 UTC - Meteosat IR image; position of vertical cross section indicated
|

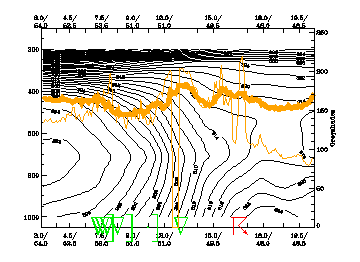

13 May 2003/12.00 UTC - Vertical cross section; black: isentropes (ThetaE), orange thin: IR pixel values, orange
thick: WV pixel values
|
![]() |
![]() |
![]() |
|

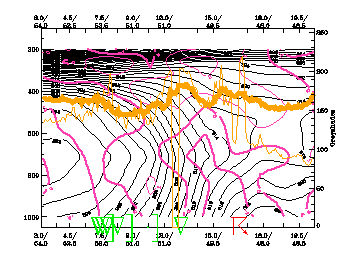

13 May 2003/12.00 UTC - Vertical cross section; black: isentropes (ThetaE), magenta thick: convergence, magenta
thin: divergence, orange thin: IR pixel values, orange thick: WV pixel values
|
