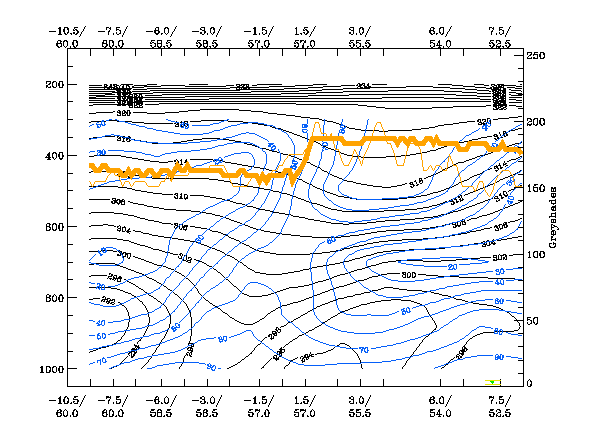

Relative Humidity:
This shows a very typical distribution of Relative Humidity for this Conceptual Model. There is high relative humidity from the ground up to about 700 hPa and from there, foreward inclined into the area of high cloud. To the rear, above about 700 hPa, there is an intrusion of dry air.

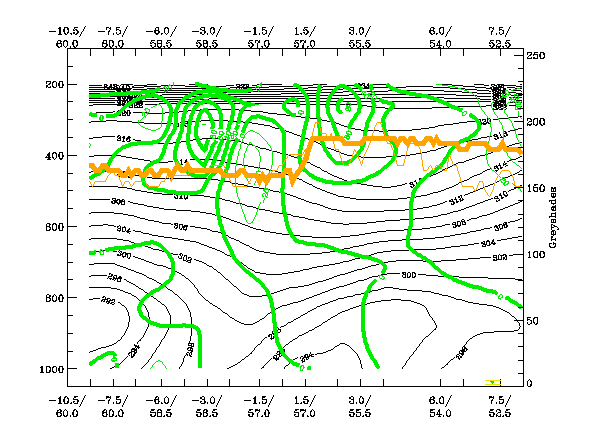

PVA:
In this vertical cross section line there are two PVA maxima above both cloud parts. Ths contradicts the typical
distribution where a PVA maximum is only expected above the rearward part. This is a consequence of the too southern
location of the vertical cross section.

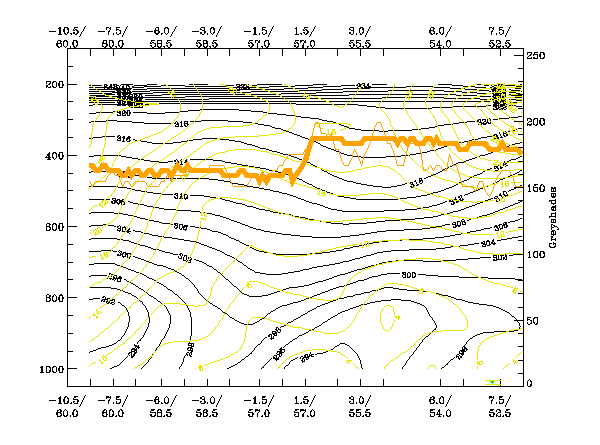

Isotachs:
In this vertical cross section it is not possible to detect an isotach maximum. Whilst this seems to be a contradiction to the distribution of isotachs in an ideal case, it is merely the consequence of a too southern location of the vertical cross section.
